Top 5 Best Fusion Splicer machine July In 2022
Fusion splicer is a high-tech instrument that combines optics, electronic technology and precision machinery. It is mainly used for the construction and maintenance of optical cables in optical communication, so it is also called optical cable welding machine or splicing machine.
The general working principle is to use high-voltage arc to melt the sections of two optical fibers, and at the same time, use high-precision motion mechanism to smoothly promote the fusion of two optical fibers into one. The fused optical fibers have the characteristics of low loss and high mechanical strength, so as to realize the coupling of optical fiber mode fields and realize the effective transmission of signals.
Top 1, Fujikura 90s+ fusion splicer price usd6299/set
Fujikura 90S+ is a fusion splicer with a high precision lenses, which provide an accurate core-to-core alignment. Also, these lenses allow the splicer to discriminate between fiber types.
The Fujikura 90S+ splicing machine possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The tool finds the true core position and achieves the consistent lower splice loss. The device features fiber discrimination function: it automatically identifies the optimum arc discharge parameters in accordance with the fiber type.
Fujikura 90S+ has faster automated features that reduce installation time. The user can complete the entire splicing process without touching the tool and only moving the fiber. The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out.
Features
Splicing time: 7-9 sec (SM FAST mode).
Heat time: 13-15 sec (for 60 mm sleeves).
Core alignment technology.
Advanced image processing technology.
Fiber discrimination function.
The faster automated features.
Time for opening wind protector is 80% lower comparing to the Fujikura 80S.
Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.
Easy fiber protection sleeve positioning.
The lid of the carrying case may be used as a work table.
Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.
The sheath clamp is compatible with loose tube fiber.
Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.
The tool can connect two cleavers simultaneously.
Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
Operation manual is installed into the splicer.
Battery life increased up to 500 recharge cycles.
Increased electrode lifetime – up to 5000 splicing cycles with one set.
5-inch color TFT touch screen display.
Technical Specifications
| Fiber alignment method | active core alignment | |
| Applicable fiber | fiber type | Single mode optical fiber |
| Multi mode optical fiber | ||
| cladding diameter | 80 μm - 150 μm | |
| Applicable coating | sheath clamp | coating diameter: max. 3 000 μm |
| cleave length: 5 mm - 16 mm | ||
| Fiber splice performance | splice loss | ITU-T G.652: avg. 0.02 dB |
| ITU-T G.651: avg. 0.01 dB | ||
| ITU-T G.653: avg. 0.04 dB | ||
| ITU-T G.655: avg. 0.04 dB | ||
| ITU-T G.657: avg. 0.02 dB | ||
| splice time | SM FAST mode: avg. 7 sec - 9 sec | |
| AUTO mode: 14 sec - 16 sec | ||
| Applicable protection sleeve | sleeve type | heat shrinkable sleeve |
| sleeve length | max. 66 mm | |
| sleeve diameter | max. 6.0 mm before shrinking | |
| Sleeve heat performance | heat time | 60 mm slim mode: avg. 9 sec - 10 sec |
| 60 mm mode: avg. 13 sec - 15 sec | ||
| Fiber tensile test force | approx. 2.0 N | |
| Electrode life | approx. 5 000 splices | |
| Dimensions (W × D × H) | 170 × 173 × 150 mm | |
| Weight | 2.8 kg (with battery) | |
| Environmental condition | temperature | operate: -10°C - +50°C |
| storage: -40°C - +80°C | ||
| humidity | operate: 0% - 95% RH non-condensing | |
| storage: 0% - 95% RH non-condensing | ||
| altitude | max. 5 000 m | |
| AC adaptor | input | AC 100 to 240 V, 50/60 Hz, max. 1.5 A |
| Battery pack | type | rechargeable lithium-ion |
| output | approx. DC 14.4 V / 6,380 mAh | |
| capacity | approx. 300 splice and heat cycles | |
| temperature | recharge: 0°C - 30°C | |
| storage: -20°C - +30°C | ||
| battery life | approx. 500 recharge cycles | |
| Display | LCD monitor | TFT 5 inches with touch screen |
| magnification | 200 to 300x | |
| Illumination | V-grooves | LED lamp |
| Interface | PC | USB2.0 Mini B type |
| external LED lamp | USB2.0 A type approx. DC 5 V, 500 mA |
|
| ribbon stripper | Mini DIN 6 pin DC 12 V, max. 1 A |
|
| wireless | Bluetooth 4.1 LE | |
| Data storage | splice mode | 100 splice modes |
| heat mode | 30 heat modes | |
| splice result | 20 000 splices | |
| splice image | 100 images | |
| Screw hole for tripod | 1/4-20UNC | |
| Other features | automatic functions | splice mode select by fiber type analysis |
| discharge power calibration | ||
| wind protector: open/close | ||
| sheath clamp: open | ||
| heater lid: open/close | ||
| heater clamp: open/close | ||
| reference guide | video and PDF file stored in splicer | |
| sheath clamp | easy sleeve positioning clamp | |
| electrode | replaceable without tool | |
Top 2, USA COMWAY C10S fusion splicer price usd4500/set
COMWAY C10S is a direct core monitoring fusion splicer for ultra fast splicing in every environment.
Features :
1. High precision CORE alignment machine.
2. Splicing time 5 sec., heating time 30 sec.
3. Fast boot technology
4. More than 500 times splicing and heating
5. Resist dust, rain, wind, and shock
6. Fiber type identify, AUTO splicing mode
7. Easy to change electrodes and fiber holder
8. High speed USB, maintenance via the Internet
Specification:
|
Size & Weight |
D156xW135xH149(mm), 2.0kg (2.5kg with battery) |
|
Fiber alignment |
High Precision CORE Alignment |
|
Fiber type Splice mode |
SM(ITU-TG.652), EB(ITU-TG.654),MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) Single fiber |
|
Fiber diameter |
Cladding diameter 80^150um, coating 100~3000um |
|
Cleave length Splicing programs |
250pm cladding diameter 8~16mm, over 250pm cladding diameter 16mm Max. 200 |
|
Splicing time |
5 sec. [SM Fast] program, 10 sec. [SM G652] program |
|
Heating programs |
Max. 30 |
|
Heating time Splice protector |
Typical 15sec. (Adjustable) 10~60mm |
|
Splice image capture |
Max. 800 |
|
Splice data storage |
Max. 20000 |
|
Splice loss |
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
|
Return loss |
»60dB |
|
Loss estimation |
Provided |
|
Operation condition |
Altitude 0~5000m, Humidity 0~95%,Temperature -2O~+5O°C, Wind velocity up to 15m/s |
|
Storage condition |
Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C) |
|
Tension |
1.96~2.25N |
|
Fiber view |
Two 300x cameras observation, 4.3 inch high-light color screen |
|
Fiber magnification |
300x for X or Y single axis view, 750x for both X&Y dual axis view |
|
Port |
High speed USB |
|
Electrodes life |
5000 arc discharges |
|
Power supply |
AC100-240V, 50/60Hz |
|
Battery parameters |
8400mAh High capacity battery, more than 500 times splicing and heating |
Top 3, Sumitomo type-82c+ splicing machine price usd5299/set

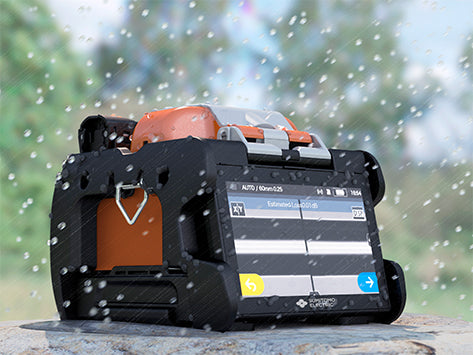

Features
- Ultra fast splicing: 5 sec.
- Ultra fast heating: 9 sec.
- Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
- Automatic arc calibration.
- G.657 fiber auto-splice function.
- Supports bi-directional splicing operation.
- Dust-resistant, water-resistant and shock-proof.
- Compact & lightweight (only 1.9 kg).
- Touch-screen operation.
- Upgrades software via internet.
- Remote interactive maintenance via internet.
- Equipped with onboard user training video.
Top 4, Fujikura 88s+ fusion splicer price usd5299/set

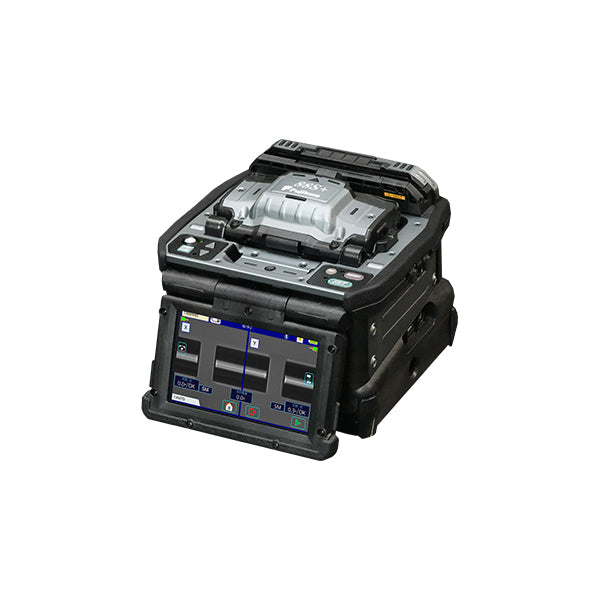

Fujikura 88S+ is a fusion splicer with a high precision lenses, which provide an accurate core-to-core alignment. Also, these lenses allow the splicer to discriminate between fiber types.
The Fujikura 88S+ splicing machine possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The tool finds the true core position and achieves the consistent lower splice loss. The device features fiber discrimination function: it automatically identifies the optimum arc discharge parameters in accordance with the fiber type.
Fujikura 90S+ has faster automated features that reduce installation time. The user can complete the entire splicing process without touching the tool and only moving the fiber. The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out.
Features
Splicing time: 7-9 sec (SM FAST mode).
Heat time: 13-15 sec (for 60 mm sleeves).
Core alignment technology.
Advanced image processing technology.
Fiber discrimination function.
The faster automated features.
Time for opening wind protector is 80% lower comparing to the Fujikura 80S.
Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.
Easy fiber protection sleeve positioning.
The lid of the carrying case may be used as a work table.
Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.
The sheath clamp is compatible with loose tube fiber.
Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.
The tool can connect two cleavers simultaneously.
Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
Operation manual is installed into the splicer.
Battery life increased up to 500 recharge cycles.
Increased electrode lifetime – up to 5000 splicing cycles with one set.
5-inch color TFT touch screen display.

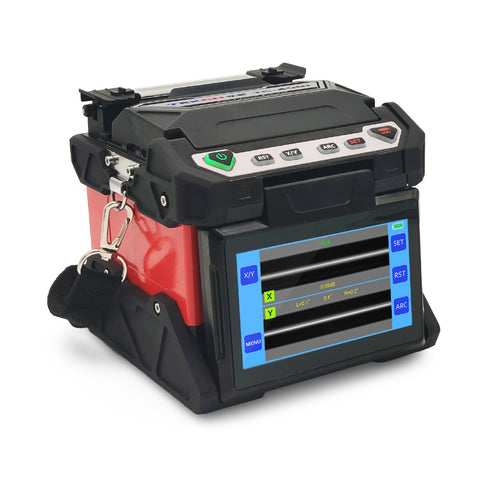

Top 5, TEKCN TC-400i Ftth Fusion Splicer price usd870/set
Speicifications
|
Fiber alignment |
core to core alignment |
|
Applicable fibers |
Single/SMF(G.652/657), MMF(G.651), DSF (G.653), NZDSF (G.655), BI(G,657) |
|
Cladding dia. |
80-150pm /100-1000pm |
|
Sheath dia. |
8-16mm |
|
Cleave length |
5mm to 16mm with sheath clamp |
|
Splice mode |
Total 100 modes, supports self-defined mode and parameter |
|
Typical splice time |
7 sec. SM FAST |
|
Typical splice loss |
0.02dB(SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS)and 0.02dB(BI) |
|
Return loss |
»60dB |
|
Heating mode |
Max. 20 |
|
Heating time |
9 sec. |
|
Applicable protection sleeve |
10~60mm |
|
Splice result storage |
Last 20,000 splices |
|
Splice image storage |
Max.800 |
|
Viewing methods |
2 axis CMOS camera with 4.73u HD color capacitive touchscreen |
|
Magnification |
Supports X/Yor both X and Y simultaneously, maximum up to 760X magnification |
|
Port |
MicroSD and USB port for software upgrade / data management |
|
Electrode life |
Typical 5000 splices |
|
Battery compacity |
4000mAh battery, more than 240 times splicing and heating; Standard charging time 3 hours (up to 80%electric quantity in 2 hours) |
|
Power supply |
AC100-240V,50/60Hz |
|
Tension test |
2N |
|
Operating condition |
Altitude : Oto 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity :0to 95%RH |
|
Storage condition |
Humidity: 0 to 95%RH Temperature: -10to 80deg C(Battery: -10 to 40deg C) |
|
Size/weight |
133Wx 144Dx 133H (mm)/1.5kg (1.8kg including battery) |
